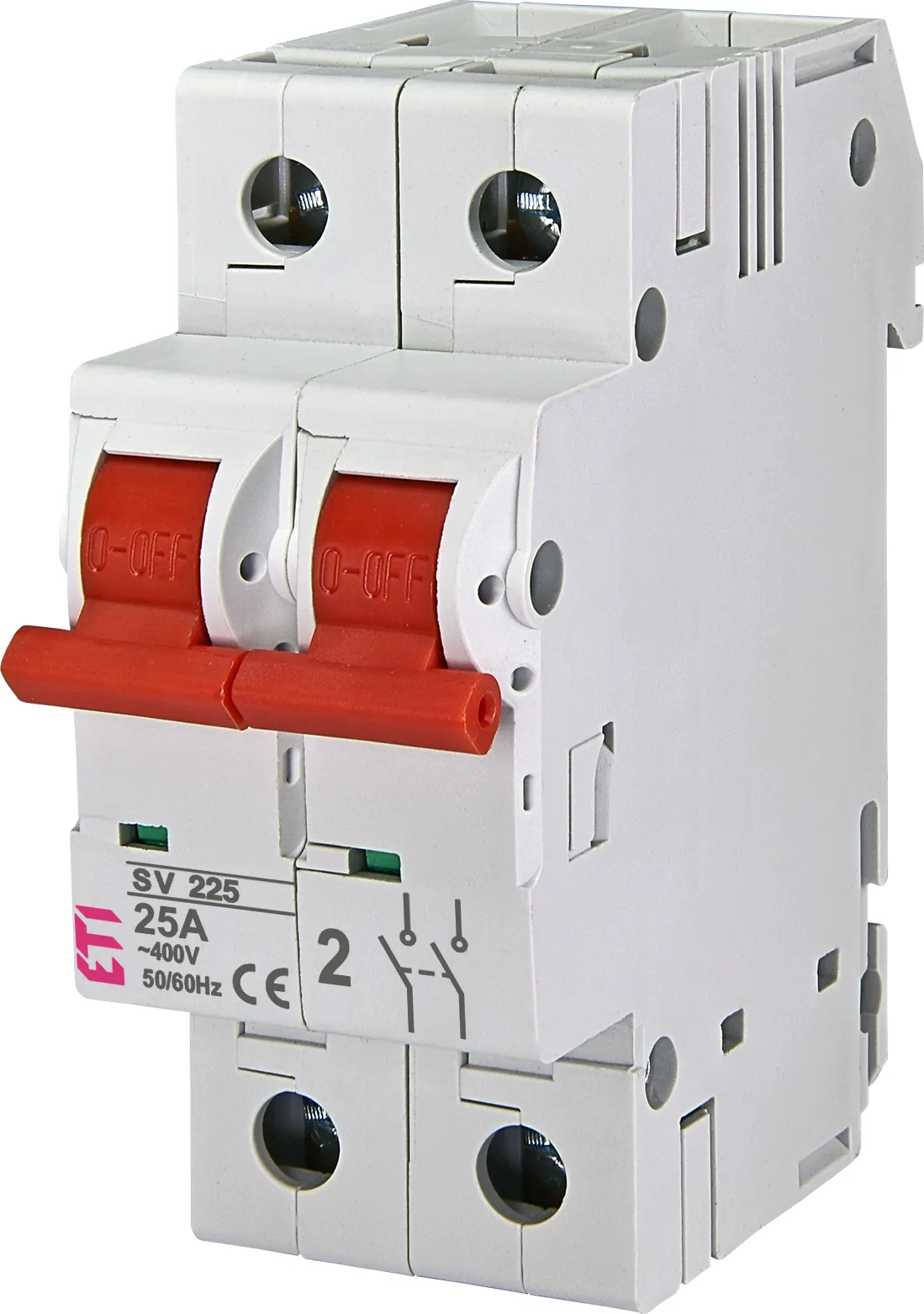

SV 225 2p 25A 002423222
Specifikace
- Kód ETI:
- 002423222
- Popis:
- SV 225 2p 25A
- Funkce:
- Vestavěný spínač
- Jmenovitý proud (A):
- 25
Dokumenty
Logistické údaje
Produkt
- EAN kód na produkt
- 3838895321293
- Váha
- 0.175 kg
- Celní sazba
- 85365080
- logis_net_width
- 36 mm
- logis_net_height
- 87 mm
- logis_net_depth
- 73 mm
Základní balení
- Množství
- 6
- EAN
- 3838895321309
- Váha
- 1.07 kg
Přepravní balení
- Množství
- 54
- EAN
- 3838895321316
- Váha
- 10 kg
- Množství - transport
- 2808
Klasifikace ETIM
- Klasifikace
- EC000216
- Název třídy
- Switch disconnector
- Version as main switch
- Ano
- Version as maintenance-/service switch
- Ano
- Version as safety switch
- Ano
- Version as emergency stop installation
- Ano
- Max. rated operation voltage Ue AC
- 400V
- Rated permanent current Iu
- 25A
- Conditioned rated short-circuit current Iq
- 2kA
- Number of poles
- 2
- Motor drive optional
- Ne
- Motor drive integrated
- Ne
- Voltage release optional
- Ano
- Device construction
- Built-in device fixed built-in technique
- Suitable for distribution board installation
- Ano
- Type of control element
- Rocker lever
- Interlockable
- Ne
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
